UploadImage Component

An image cropping interface presented in a modal window. Users can upload an image, adjust the crop area using drag and resize handles, and export the cropped result as a base64 image string. Supports PNG, JPG, JPEG, and WebP formats with configurable file size limits.

---

Table of Contents

• Import
• Basic Usage
• Props
• Events
• TypeScript Interfaces
• Usage Examples
• Best Practices
• Troubleshooting

---

Import

import { UploadImage } from "dolphin-components";
import type { UploadImageProps } from "dolphin-components";

---

Basic Usage

<template>
  <button @click="showCropper = true" class="btn btn-primary">Upload Photo</button>

  <UploadImage
    :show="showCropper"
    @onClose="showCropper = false"
    @onCrop="handleCrop"
  />
</template>

<script setup>
import { ref } from "vue";
import { UploadImage } from "dolphin-components";

const showCropper = ref(false);

const handleCrop = (base64Image: string) => {
  console.log("Cropped image:", base64Image);
  showCropper.value = false;
};
</script>

---

Props

Prop	Type	Default	Description
show	boolean	false	Controls visibility of the cropping modal.
uploadSize	number	2	Maximum allowed image file size in MB.

---

Events

Event	Payload	Description
onClose	—	Emitted when the modal is closed (via close button or cancel action).
onCancel	—	Emitted when the cancel button is clicked.
onReset	—	Emitted when the reset button is clicked (clears the current crop).
onCrop	string	Emitted when the crop is confirmed. Payload is a base64 image string.

---

Slots

This component does not provide any slots.

---

TypeScript Interfaces

interface UploadImageProps {
  show: boolean;
  uploadSize: number;
}

---

Usage Examples

Profile Picture Upload

<template>
  <div class="flex items-center gap-4">
    <img
      v-if="profileImage"
      :src="profileImage"
      class="w-20 h-20 rounded-full object-cover"
      alt="Profile"
    />
    <div v-else class="w-20 h-20 rounded-full bg-gray-200 flex items-center justify-center">
      <Icons name="User" :size="32" color="gray" />
    </div>

    <button @click="showCropper = true" class="btn btn-outline-secondary">
      Change Photo
    </button>
  </div>

  <UploadImage
    :show="showCropper"
    :uploadSize="5"
    @onClose="showCropper = false"
    @onCrop="handleCrop"
  />
</template>

<script setup>
import { ref } from "vue";
import { UploadImage, Icons } from "dolphin-components";

const showCropper = ref(false);
const profileImage = ref("");

const handleCrop = (base64: string) => {
  profileImage.value = base64;
  showCropper.value = false;
};
</script>

With Custom Size Limit

<UploadImage :show="showCropper" :uploadSize="10" @onCrop="handleCrop" @onClose="showCropper = false" />

---

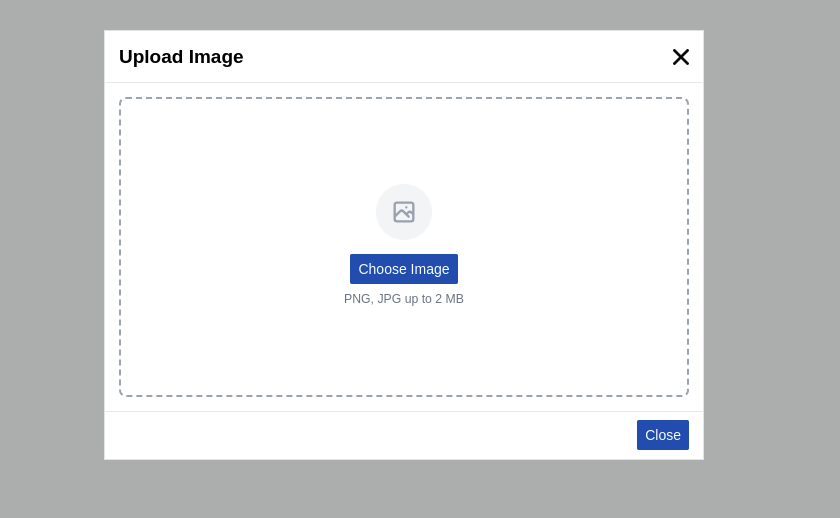

Screenshot

---

Supported Formats

Format	MIME Type
PNG	image/png
JPG	image/jpeg
JPEG	image/jpeg
WebP	image/webp

---

Cropping Features

• Drag to move the crop box within the image boundaries
• Corner handles to resize the crop area
• Minimum crop size: 50px × 50px
• Boundary constrained: Crop box cannot exceed image edges
• Base64 output: The cropped result is a base64-encoded image string ready for display or API upload

---

Best Practices

1. Set reasonable size limits — Use uploadSize to prevent users from uploading excessively large images.
2. Close after crop — Set showCropper = false in the @onCrop handler for a clean workflow.
3. Preview the result — Show the cropped image immediately in an <img> tag with the base64 src.
4. Convert for API upload — If your backend expects a File/Blob instead of base64, convert it before sending.

---

Troubleshooting

Image not loading

• Verify the file format is supported (PNG, JPG, JPEG, WebP).
• Check that the file size is within the uploadSize limit.

Crop box too small

• The minimum crop size is 50px × 50px. Ensure the uploaded image is large enough.
